Kaladex 2000 – PEN Film
Kaladex 2000 – PEN Film
无法加载取货服务可用情况
(click: international alibaba)
PHONE: +86 13018633443
E-MAIL: CHENCENL@163.COM
Product Description

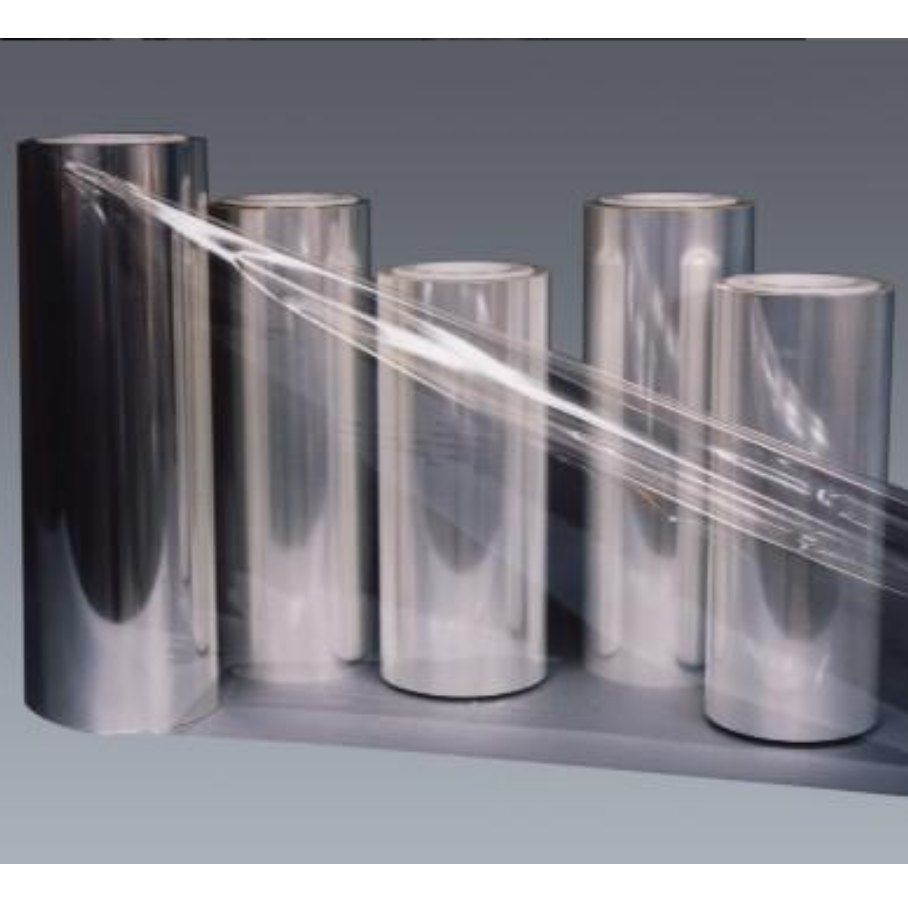

Kaladex® 2000 is a biaxially oriented PolyEthylene Napthalate (PEN) film. PolyEthylene Napthalate (PEN) is a high performance polyester that offers many enhanced properties such as strength, heat resistance, hydrolysis resistance, dimensional stability and low oligomer extraction, while maintaining the ease of
processing found with standard PolyEthylene Terephthalate (PET) films. Kaladex® 2000 is a lightly filled film to give good handling properties and is currently available at a range of thicknesses between 16-75μm with extension to 125μm expected in the near future.
Kaladex® is the trademark for a range of PolyEthylene Naphthalate (PEN) films from DuPont Teijin Films.
Typical Applications
Kaladex® 2000 can be used in a wide range of electrical and electronic applications such as capacitors, motors, transformers, flexible printed circuits and fuel cells, as well as many industrial applications where the enhanced properties over standard PET films offer benefits.
General Information
Kaladex® 2000 can withstand a broad range of temperatures and has good resistance to moisture and most chemicals. It contains no plasticisers and will not become brittle with age under normal conditions. As per Article 3(3) of the REACH regulation (EC) No 1907/2006 Kaladex® 2000 film is classified as an article. There are no substances intended to be released from the above film under normal , reasonably foreseeable conditions of use, as defined by Article 7(1).
Food Contact Advice
Kaladex® 2000 has not been assessed against Food Contact Legislation
| Property | Unit | Typical Values | Test Method | ||||
| General | 16 | 25 | 38 | 50 | 75 | ||
| Density | g/cm3 | 1.36 | ASTM D1505-79 | ||||
| Electrical | 16 | 25 | 38 | 50 | 75 | ||
| Dielectric Breakdown Voltage | KV/mm | – | – | – | 230 | – | ASTM D149 |
| Mechanical | 16 | 25 | 38 | 50 | 75 | ||
| F5 Value | kg/mm2 | MD15 | ASTM D882-83 | ||||
| TD15 | |||||||
| Tensile Strength | kg/mm2 | MD24 | ASTM D882-83 | ||||
| TD28 | |||||||
| Elongation to Break | % | MD90 | ASTM D882-83 | ||||
| TD65 | |||||||
| Optical | 16 | 25 | 38 | 50 | 75 | ||
| Haze | % | 5 | 6.5 | 9 | 12 | 14 | ASTM D1003-77 |
| Thermal | 16 | 25 | 38 | 50 | 75 | ||
| Melting Point | oC | 269 | DSC | ||||
| Glass Transition Temperature | oC | 121 | DSC | ||||
| Shrinkage (150oC, 30 min) | % | MD 1.5 |
DTF Method based on
ASTM D1204-78 |
||||
| TD 1.5 | |||||||
| độ co ngót(150 độ C, 30 phút) | % | MD 0.7 |
DTF Method based on
ASTM D1204-78 |
||||
| TD 0.7 | |||||||
| Co-efficient of Thermal Expansion | 10(-6)/c | MD 18 |
Based on ASTM
E831-06 |
||||
| TD 16 | |||||||
| Co-efficient of Hydroscopic | 10(-6)/%RH | MD 11 | |||||
| TD 11 | |||||||
|
Relative Temperature Index (UL File E93687): |
|||||||
| Mechanical | oC | 160 | UL 746B | ||||
| Electrical | oC | 180 | UL 746B | ||||
Disposal Advice
Disposal of Kaladex® 2000 does not present special disposal problems. Where waste occurs in a clean, uncontaminated form it can in principle be recycled. In most circumstances, once Kaladex® 2000 has been laminated, coated, printed or metallised, incineration with Energy Recovery is the most environmentally efficient recovery route. Kaladex® 2000 can also be burned in an incinerator with normal refuse or can be buried as a relatively inert material in a landfill. The disposal method should comply with appropriate local and country regulations.
