FORMEX GK Series Polypropylene Electrical Insulation Materials GK-5, GK-10, GK-17, GK-30, GK-40 and GK-62 0.127mm to 1.57mm
FORMEX GK Series Polypropylene Electrical Insulation Materials GK-5, GK-10, GK-17, GK-30, GK-40 and GK-62 0.127mm to 1.57mm
常规价格
¥13,000.00 CNY
常规价格
¥13,000.00 CNY
促销价
¥13,000.00 CNY
数量
无法加载取货服务可用情况
(click: international alibaba)
PHONE: +86 13018633443
E-MAIL: CHENCENL@163.COM
Formex GK Series includes GK-5, GK-10, GK-17, GK-30, GK-40 and GK-62 with thickness ranging from 0.127mm(0.005’’) to
1.57mm(0.062’’). It’s a series of flame retardant polypropylene electrical insulation material, which is the most popular and
widely used application series among the ITW Formex Family. It features superior dielectric strength, excellent moisture and
chemical resistance, as well as high temperature resistance. GK Series is available in both sheet size and rolls, and as a
professional and experienced converter, we can rewind and slit the GK material to be smaller size then laminate with 3M adhesives
and die cut into custom shapes and sizes as requests to reduce the costs associated with fabricating, warehousing and shipping for
the end user.
1.57mm(0.062’’). It’s a series of flame retardant polypropylene electrical insulation material, which is the most popular and
widely used application series among the ITW Formex Family. It features superior dielectric strength, excellent moisture and
chemical resistance, as well as high temperature resistance. GK Series is available in both sheet size and rolls, and as a
professional and experienced converter, we can rewind and slit the GK material to be smaller size then laminate with 3M adhesives
and die cut into custom shapes and sizes as requests to reduce the costs associated with fabricating, warehousing and shipping for
the end user.
ITW Formex® polypropylene and polycarbonate flame retardant electrical insulating materials provide superior electric surge
shielding in industrial and consumer electronic equipment. It is also useful as a thermal and electrical barrier material which is
reflected in its UL 94V-0 Flame Class Rating. Formex™ heat insulating materials are available as sheets and rolls or and can be
fabricated into a wide range of shapes to meet the flammability and dielectric needs of a variety of applications.
FORMEX GK-5
Thickness: 0.127mm(0.005’’)
Color: Black
Standard Roll Size: 610mm x 305meter
Roll Weight: 26KG
FORMEX GK-10
Thickness: 0.25mm(0.01’’)
Color: Natural/Black
Standard Roll size: 610mm x 610meter
Roll Weight: 210KG
FORMEX GK-17
Thickness: 0.43mm(0.017’’)
Color:Natural/Black
Standard Roll Size: 610mm x 305meter
Roll Weight: 81KG
FORMEX GK-30
Thickness:0.76mm(0.03’’)
Color:Natural/Black
Standard Roll Size: 610mm x183meter
Standard Sheet Size: 610mm x 1219mm
Roll Weight:87KG
FORMEX GK-40
Thickness: 1.02mm(0.04’’)
Color:Natural/Black
Standard Sheet Size: 610mm x1219mm
FORMEX GK-62
Thickness: 1.57mm(0.062’’)
Color:Natural/Black
Standard Sheet Size: 610mm x1219mm
Application:

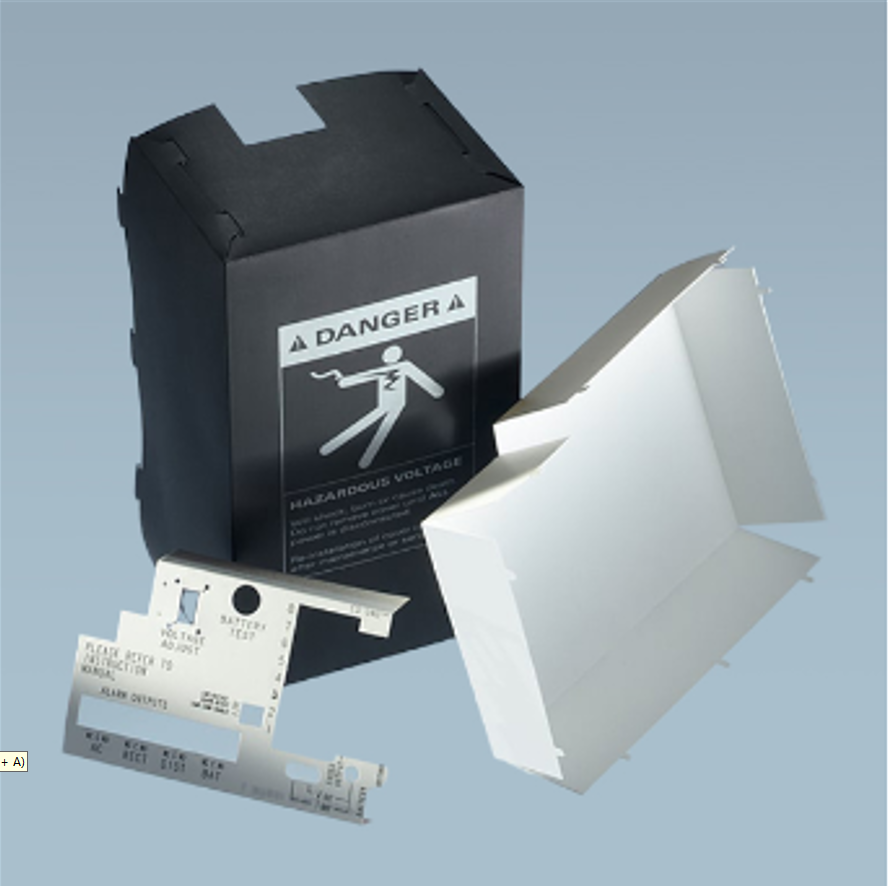

Formex GK series polypropylene insulation paper features with good chemical resistance, low water absorption and high dielectric
breakdown voltage, which can replace a variety of electrical papers, thermoplastic materials, and injected molded parts. It can be
used as a physical barrier that protects general users or service workers from the dangers of exposure to electrically charged
components,and also used in other various application like EV battery packs, power supplies, transformers and other industrial
equipment and consumer electronics industry etc.
We can provide Formex GK series in both roll and sheet size but also offer laminate and die cutting solution as per customer’s
different application request.
Contact us to customize your own solution!
Thickness: 0.127mm(0.005’’)
Color: Black
Standard Roll Size: 610mm x 305meter
Roll Weight: 26KG
FORMEX GK-10
Thickness: 0.25mm(0.01’’)
Color: Natural/Black
Standard Roll size: 610mm x 610meter
Roll Weight: 210KG
FORMEX GK-17
Thickness: 0.43mm(0.017’’)
Color:Natural/Black
Standard Roll Size: 610mm x 305meter
Roll Weight: 81KG
FORMEX GK-30
Thickness:0.76mm(0.03’’)
Color:Natural/Black
Standard Roll Size: 610mm x183meter
Standard Sheet Size: 610mm x 1219mm
Roll Weight:87KG
FORMEX GK-40
Thickness: 1.02mm(0.04’’)
Color:Natural/Black
Standard Sheet Size: 610mm x1219mm
FORMEX GK-62
Thickness: 1.57mm(0.062’’)
Color:Natural/Black
Standard Sheet Size: 610mm x1219mm
Application:
Formex GK series polypropylene insulation paper features with good chemical resistance, low water absorption and high dielectric
breakdown voltage, which can replace a variety of electrical papers, thermoplastic materials, and injected molded parts. It can be
used as a physical barrier that protects general users or service workers from the dangers of exposure to electrically charged
components,and also used in other various application like EV battery packs, power supplies, transformers and other industrial
equipment and consumer electronics industry etc.
We can provide Formex GK series in both roll and sheet size but also offer laminate and die cutting solution as per customer’s
different application request.
Contact us to customize your own solution!
